Authorising a UWC Request (Signal Box Closed)
0 of 18 core actions ticked· ticks are kept in this tab only

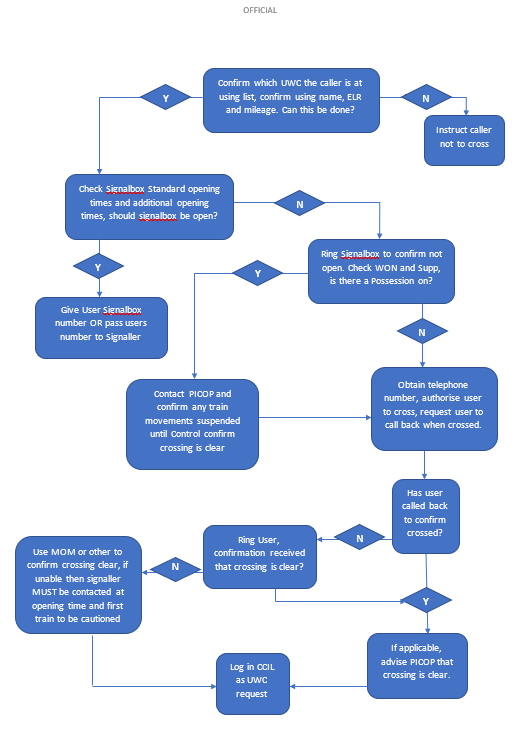

Controller to ensure the following core actions have been completed:
1

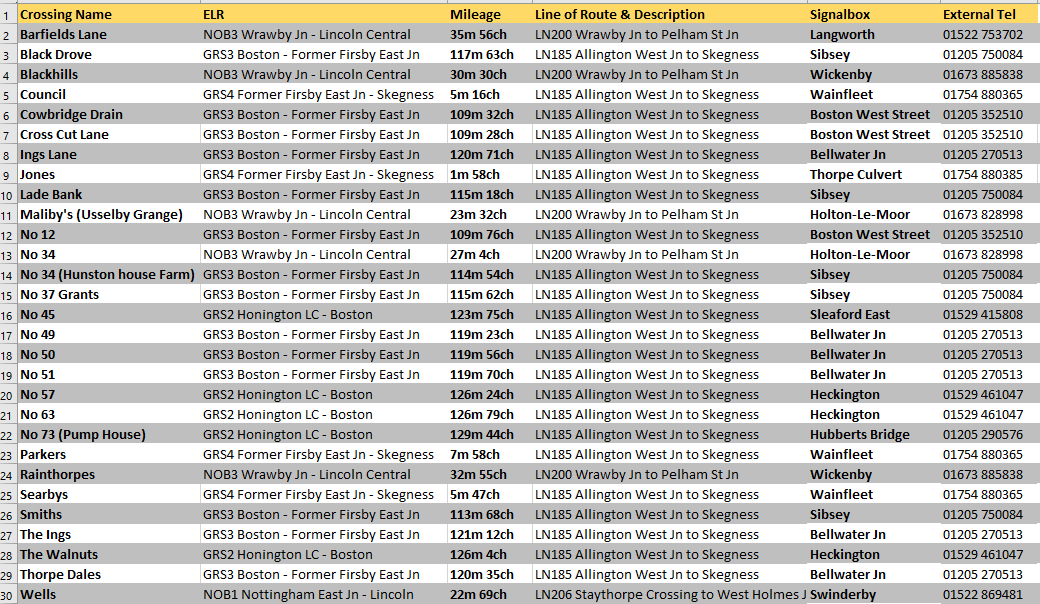

Check the request is at UWC's listed:
2

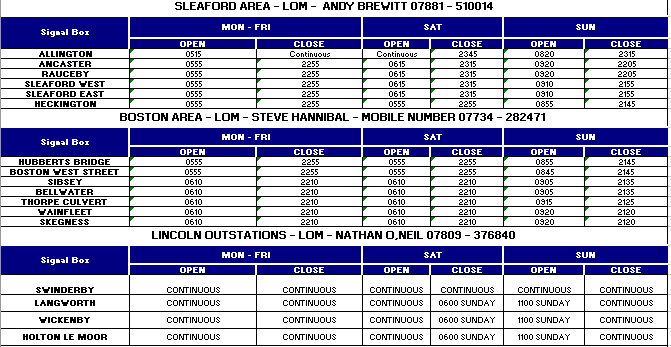

Check signal box standard opening times and additional opening
3
Signal box open
4
Give caller the number or forward call
5
Signal box closed
6
Ring signal box to confirm closed
7
Check for possessions in the area.
8
Possession on
9
Contact PICOP to establish train movements/suspend until crossing is confirmed clear
10
No Possession
11
Obtain requester phone number, Authorise crossing with a call back
12
Caller doesn’t ring back
13
Call user and confirm crossing is clear
14
Use MOM or other to confirm/If unable first service to be cautioned
15
Caller confirms crossing clear
16
If applicable advise PICOP
17
Create a CCIL UWC request
18
Version 2.2 (Updated 05/06/21)
