AWS Faults
0 of 15 core actions ticked· ticks are kept in this tab only
Controller to ensure the following core actions have been completed:
1
Signal number
2
Which train /unit number/ What Line
3

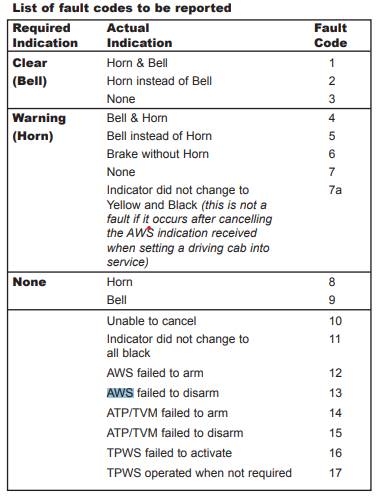

AWS Fault code
4
Advise TOC/FOC
5
Record in FMS, check history and if a repeat within 5 days send S&T staff
6
Advise S&T SM if not a repeat
7
Additionally if a Code 5 , 7 and 7a(WSF) is reported:
8

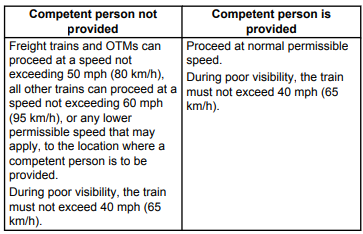

Obtain from signaller method of working for subsequent trains.
9
Escalate to S&T Supervisor/Engineer and appoint Level 2 & 3
10
Obtain the completed RT3185
11
Advise NOC (if Wrong Side Failure)
12
Request FFCCTV and request download from TOC/FOC. Box CCT for data download
13
Update CCIL, FMS and WhatsApp safety alert
14
If AWS on board equipment is believed to be the issues request TOC/FOC (DOTE) Defective on train equipment instruction
15
If AWS is defective or isolated apply TW5 instructions.
